Design Customization

This guide explains how to customize the look and feel of the plugNmeet user interface. You can achieve a fully branded, white-label experience by using a combination of simple configuration parameters and your own custom CSS.

Method 1: Using `config.js` for Basic Customization

For quick and easy branding, you can edit the config.js file located in the dist/assets/ directory of the plugNmeet-client package. Inside this file, you will find a window.DESIGN_CUSTOMIZATION variable.

This variable accepts a JSON string with various parameters to control the primary visual elements of the interface. You can also pass this same JSON object as a URL parameter named custom_design when joining a room.

window.DESIGN_CUSTOMIZATION = `{
  "primary_color": "#004D90",
  "secondary_color": "#24AEF7",
  "background_color": "#F5F5F5",
  "background_image": "https://mydomain.com/custom_bg.png",
  "header_bg_color": "#FFFFFF",
  "footer_bg_color": "#FFFFFF",
  "left_side_bg_color": "#FFFFFF",
  "right_side_bg_color": "#FAFAFA",
  "custom_css_url": "https://mydomain.com/plugnmeet_design.css",
  "custom_logo": "https://mydomain.com/logo.png"
}`;

Design Parameters

Important: All external resources (background_image, custom_css_url, custom_logo, etc.) must be served over HTTPS. Using non-HTTPS (http://) URLs will cause mixed-content errors in the browser and prevent the resources from loading.

Field	Description
`primary_color`	The primary brand color for buttons, icons, and other key highlights. (Hex format)
`secondary_color`	The secondary brand color, often used for accents. (Hex format)
`background_color`	Sets the default background color of the main meeting room.
`background_image`	Sets a custom background image for the room. This must be a direct HTTPS URL. If `background_image` is set, `background_color` will be ignored.
`header_bg_color`	The background color for the main header bar.
`footer_bg_color`	The background color for the main footer and control bar.
`left_side_bg_color`	The background color for the left-side panel (e.g., participants list).
`right_side_bg_color`	The background color for the right-side panel (e.g., chat).
`custom_css_url`	A URL to your own custom CSS file for advanced, granular customization. This must be a direct HTTPS URL. See Method 2 below.
`custom_logo`	A URL for your brand's logo, displayed on the welcome screen and in the header. Must be a direct HTTPS URL.

Method 2: Using Custom CSS for Advanced Customization

For complete control over every element in the interface, you can provide a custom_css_url in the configuration. This CSS file will be loaded after all default stylesheets, allowing you to override any class.

Below are some common examples of how to customize various UI components.

Global Color Classes

These classes are used throughout the application and are a good starting point for applying your brand colors.

Primary Color & Background

.primaryColor, .text-primaryColor {
    color: #004D90;
}
.bg-primaryColor {
    background: #004D90;
}

Secondary Color & Background

.secondaryColor, .text-secondaryColor {
    color: #24AEF7;
}
.bg-secondaryColor {
    background: #24AEF7;
}

Header Elements

You can change the header's background, logo, title, and decorative shapes.

Header Background Color

header#main-header {
  background-color: azure;
}

Header Logo

.header-logo {
    background-image: url(./assets/imgs/your-logo.png) !important;
}

Header Title

h2.header-title {
    color: blue;
    font-size: 20px;
}

Participants Panel

Customize the participants panel, including its background, width, and the style of the text.

Panel Wrapper

.participants-wrapper {
    background: #fff;
    width: 300px;
    padding: 14px;
}

Panel Headline

.participants-wrapper .top p {
    font-size: 20px;
    color: grey;
}

Messages Panel

Customize the chat and messages panel.

.MessageModule-wrapper {
    background: #fff;
    width: 300px;
    padding: 14px;
}

Key Pages

Welcome/Join Page

Change the style of the initial join modal.

#startupJoinModal {
    background-color: aqua;
}

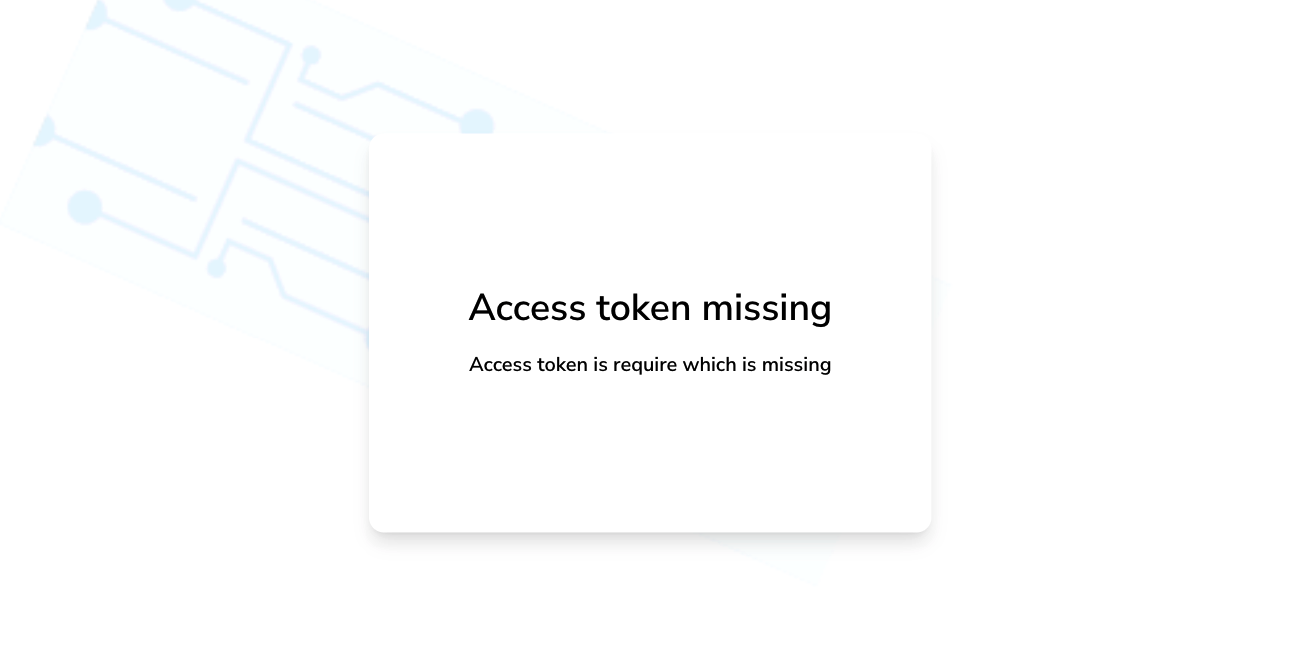

Error Page

Customize the background of the error page with an image or a solid color.

.error-app-bg {
    background: aliceblue !important;
}

Pro Tip: To find the class for any element you want to change, simply use the "Inspect Element" tool in your web browser to identify its CSS selector.
